Polished Nickel Pendant Lampholder | Bayonet B22 Fitting With Cable Grip

Product Description

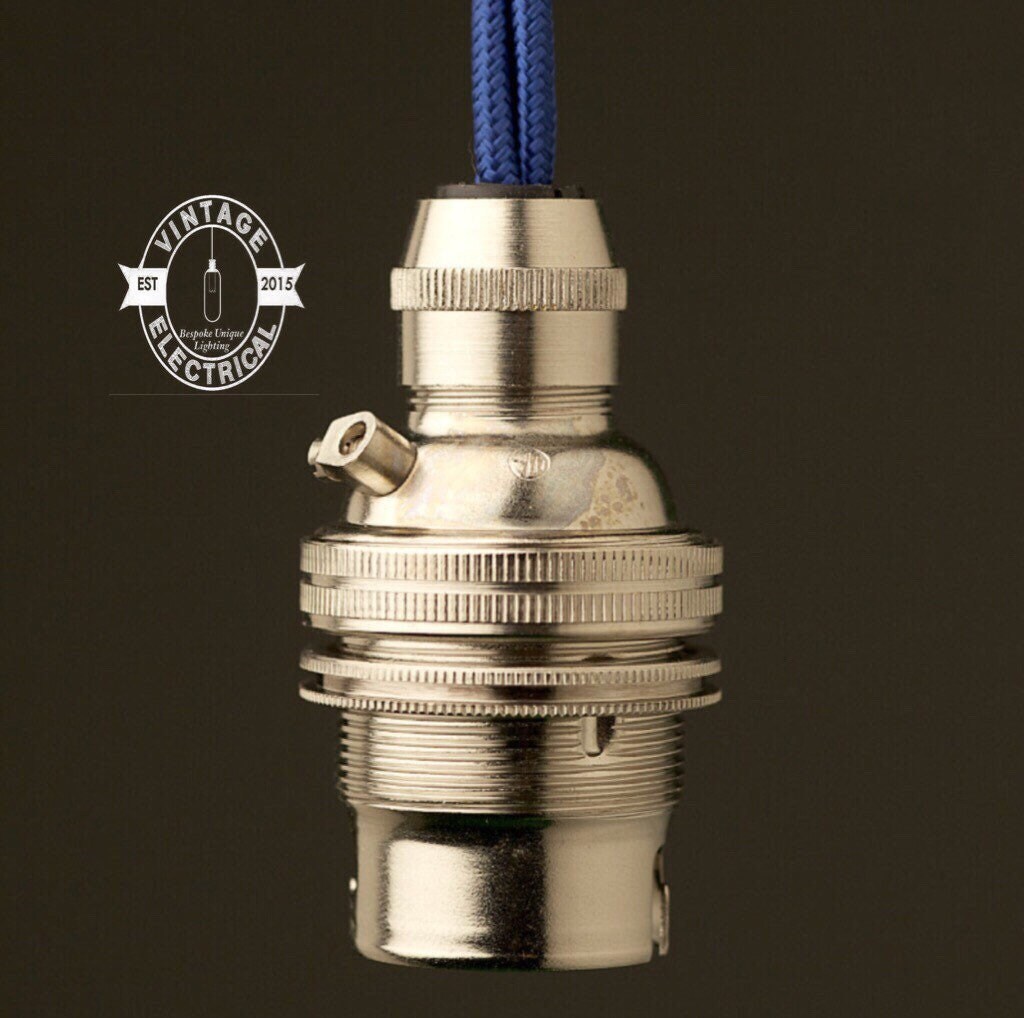

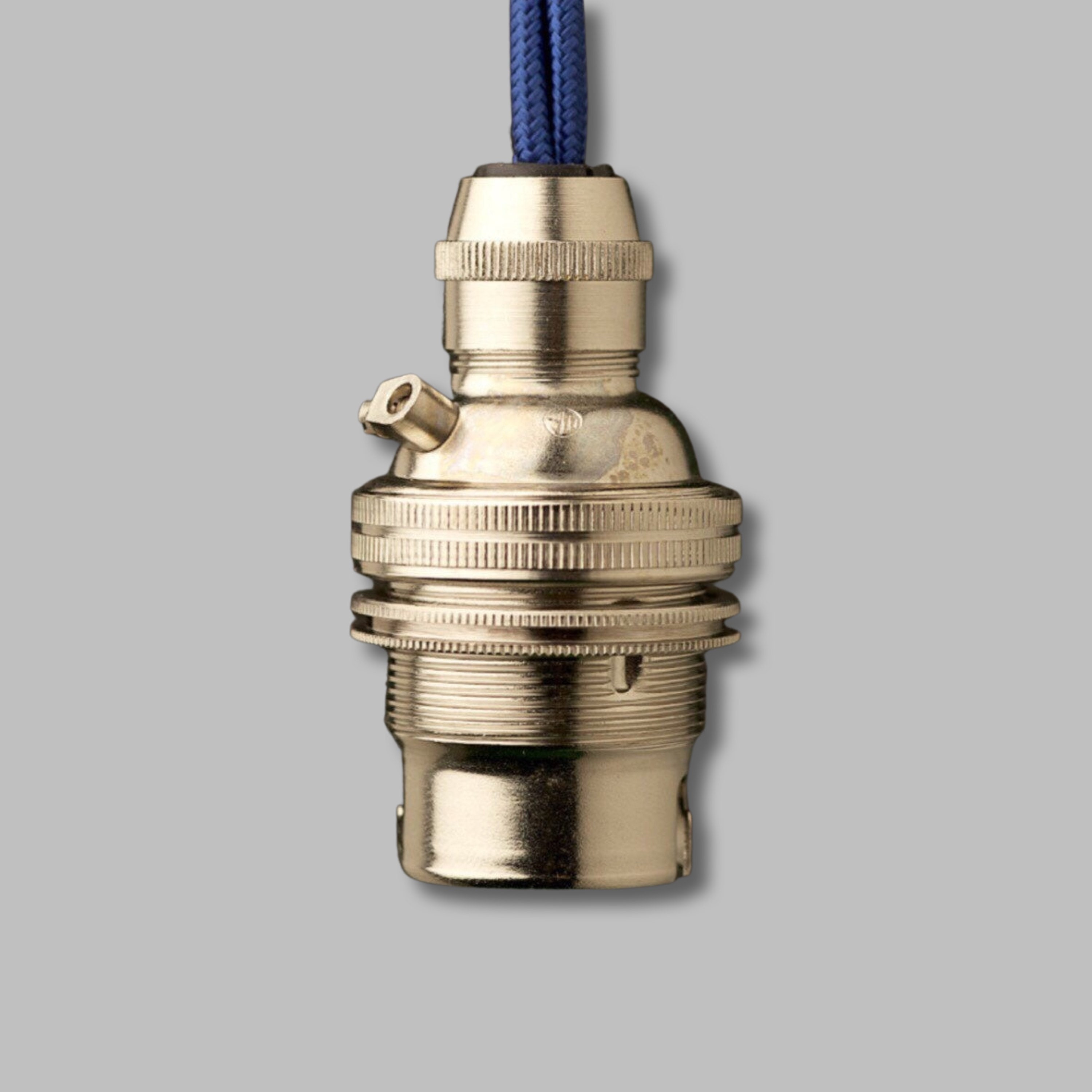

Nickel Pendant Lampholder Bayonet B22 fitting with nickel silver plate brass body. This precision made solid brass Nickel Pendant Lampholder features a high quality ceramic terminal insert with brass screw terminals. A solid compression style cord grip ensures that the cable can not be pulled from the fitting.

The single shade nut is employed to hold a gallery or in some instances, a shade directly to the lamp holder. To fit a shade, the lamp holder barrel measures 26mm and the external diameter of the shade ring is 32mm. This lamp holder must be earthed and has a polarising feature to ensure that the ceramic insert is correctly aligned when assembled. Line up lugs in cap with insert indent when assembling.

Earthed system that requires 3 core flex and needs to be wired with earth for use a a ceiling pendant light fitting. Earthing cable connection is visible at the top of the lampholder when assembled.

This solid nickel plated lamp holder brass has threaded entry, cord grip.

Input Voltage Max: 250VAC
Rated Current Max: 2A
Earth Requirement: Yes
Temperature Classification: T2
Material: Brass & ceramic
Base Type: Bayonet B22, BC
Entry Type: Cable grip
Shade Nut: Yes
Recommended Shade Hole Dia: 28mm
Height: 58mm
Diameter: 32mm
Certifications: RCM SGS-150225-EA, CE
